Home » Shop » hot sale » Zeeline 1040 1″ Double Diaphragm Pump

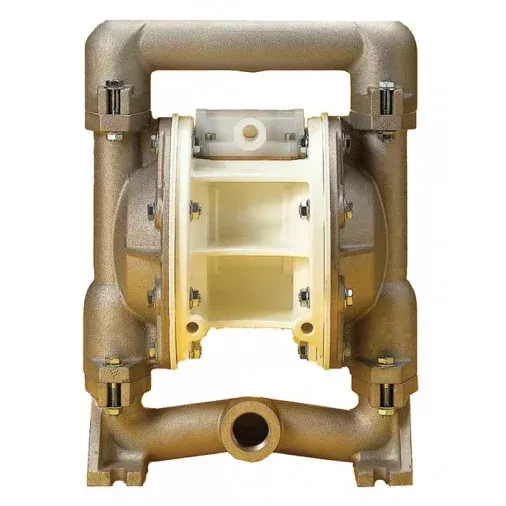

Zeeline 1040 1″ Double Diaphragm Pump

Original price was: $534.76.Current price is: $323.75.

Sale!
SKU: ZEE1040 Category:
Share
Download Spec Sheet

1040 Specifications

AIR RATIO:
1:1
FLUID INLET/OUTLET:
1” NPT
MAX . FLOW:
37 GPM
AIR INLET PORT:
1/4″ NPT
BODY CONSTRUCTION:
Alum / Polypro
DIAPHRAGMS:
Buna N
BALLS:
Acetal
SEATS:
Aluminum
UL LISTED:
No
AIR CONSUMPTION:
40CFM @ 80 PSI
BOLT PATTERN:
4.250” X 8.250”
HEIGHT:
14.125”
MAX PARTICLE SIZE:
1/8″
SUCTION LIFT – DRY:
15′
SUCTION LIFT – WET:
25′

1040SS Specifications

AIR RATIO:
1:1
FLUID INLET/OUTLET:
1” NPT
MAX . FLOW:
37 GPM
AIR INLET PORT:
1/4″ NPT
BODY CONSTRUCTION:
Stainless Steel
DIAPHRAGMS:
PTFE
BALLS:
PTFE
SEATS:
PTFE
UL LISTED:
No
AIR CONSUMPTION:
40CFM @ 80 PSI
BOLT PATTERN:
4.250” X 8.250”
HEIGHT:
14.125”
MAX PARTICLE SIZE:
1/8″
SUCTION LIFT – DRY:
15′
SUCTION LIFT – WET:
25′

1040UL Specifications



AIR RATIO: DIAPHRAGMS: BOLT PATTERN:
1:01 Buna N 4.250” X 8.250”
FLUID INLET/OUTLET: BALLS: HEIGHT:
1” NPT PTFE 15.125”
MAX . FLOW: SEATS: MAX PARTICLE SIZE:
37 GPM Aluminum 1/8″
AIR INLET PORT: UL LISTED: SUCTION LIFT – DRY:
1/4″ NPT Yes 15′
BODY CONSTRUCTION: AIR CONSUMPTION: SUCTION LIFT – WET:
Aluminum 30CFM @ 50 PSI 25′
