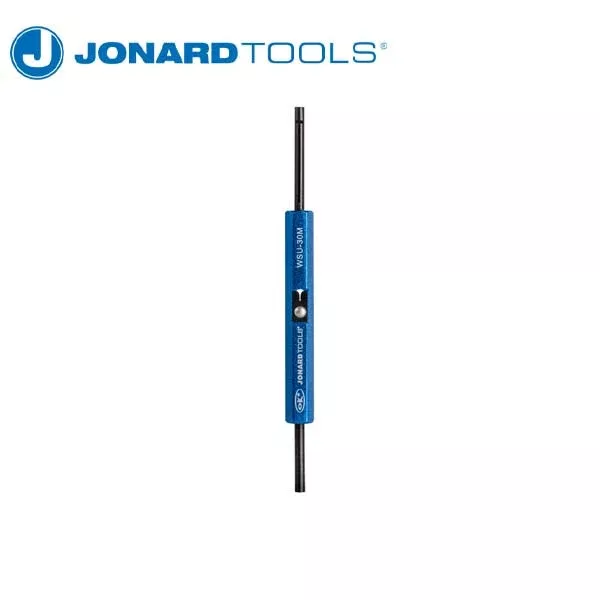

Wrap-Strip-Unwrap Tool – 30 AWG – Modified Wrap Type

Designed to wrap, strip, and/or unwrap 30 AWG (0.25 mm) wire, this tool is perfect for quick wire service and repair applications. This tool features the following:For use on 0.025″ (0.63 mm) square terminals on 0.100″ (2.54 mm) center to center of the pins Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical Patented built-in wire stripping blades make wire stripping quick and easy in such a compact tool Modified wrap provides 1.5 to 2 turns of insulation when wire wrapping Plastic handle for reduced weight and comfortable to carrySpecifications Wrap Type Modified Wire Gauge 30 AWG (0.25 mm) Maximum Insulation Diameter 0.021″ (0.53 mm) Terminal Hole Diameter 0.036″ (0.91 mm) Terminal Hole Depth 1.50″ (38.1 mm) Outside Diameter 0.125″ (3.2 mm) Wrap Post Size 0.025″ (0.63 mm) Dimensions 4.5 in x 0.36 in x 0.34 in (11.44 cm x 0.9 cm x 0.86 cm)Weight 0.03 lb (11.804 g)UPC 811490011335Downloads:Spec Sheet
