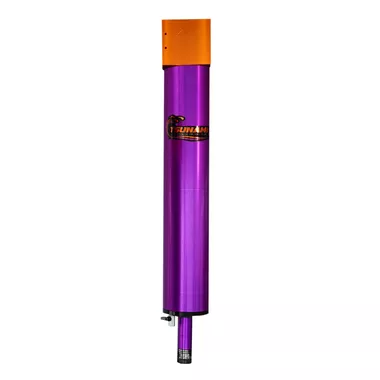

Tsunami Float Drain
Tsunami oil coalescing filters deliver high grade compressed air and protect critical equipment from oil aerosols and particulates. Tsunami oil coalescing filters use a non-wicking drain layer secured to the outside support core to separate oil and water from the air flow and drain the liquid to the filter sump.
Features and Benefits
- Manufactured from borosilicate glass micro fibers bonded together with a resin binder.
- Chemical-resistant cores and layers support coalescing media.
- Non-Wicking layer collects and drains oil into drain sump of the filter housing, preventing entrainment.
- Point-of-use protection for air tools and pneumatic equipment.
- Removes oil, oil mist and particulates down to .01 micron at 99.9% efficiency.
- Made in America.
Specifications
| CFM | ITEM | PORT SIZE (NPT) | DRAIN | MAX PSI | MAX °F | WEIGHT | DIMENSIONS (HWD) |
| 800 | 21999-0960-Z-FD | 3 | Float | 200 | 175 | 45 | 43″ X 6″ X 6″ |
