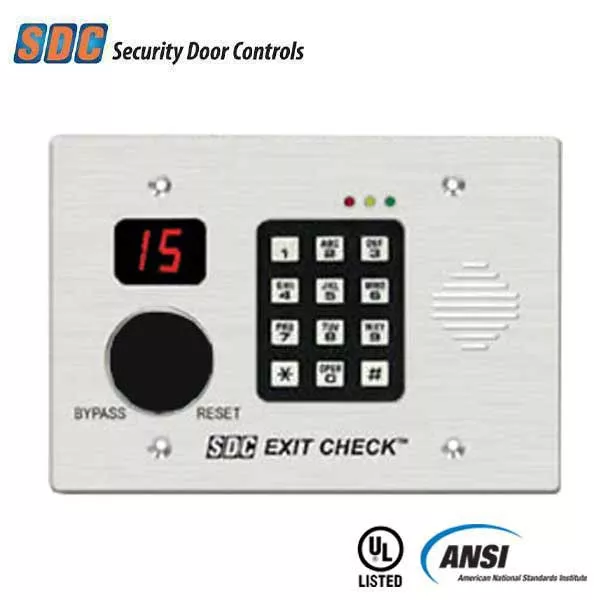

SDC – 101-KDENA – Delayed Egress Controller – Selectable Delay – Keyswitch – 12/24VDC – Aluminum – Fire Rated – Grade 1

SDC’s 101-DE series delayed egress controllers incorporate all ExitCheck® features into a two piece delayed egress system where the door is closed and secured by delayed egress locking hardware. The 101-DE series delayed egress controller sends power to the slave operating magnetic locks or exit devices to lock the door in a secured position. No Cylinder includedFor slave operating magnetic locks SDC-1511DEV-628Features:Activation by door movement or exit barLocked & egress mode status outputsAdj. timed bypass 1-30 sec.Keypad reset, sustained bypass & timed bypass.Mortise keyswitch control (101-KDE)UBC & California compliant manual power upAuto sensing 12/24VDC voltage InputUL, CSFM, MEA Listed3 Gang Controller, Surface Box OptionalSpecifications:Type:Keypad & Key Switch ControlConstruction:AluminumOperation: Selectable Egress DelayDimensions:4-1/2” x 6-7/16” x 2”Voltage:12/24 VDC ± 10%; Auto-sensingCurrent:180 mA @ 12/24 VDC (Max)Egress Delay:Selectable 15 or 30 secNuisance Time:Selectable 1 or 2 secReset After Alarm:ManualLock On Power Up:Selectable Locked or UnlockedFinish:628 – AluminumFire Rated:UL 10C Positive Pressure Fire Tests of Door AssembliesCertifications:UL, CSFM, MEA, NFPA 101, UBC, IBC, IFC, SBCManufacturer’s Warranty5 years Downloads:Spec SheetInstallation Guide
