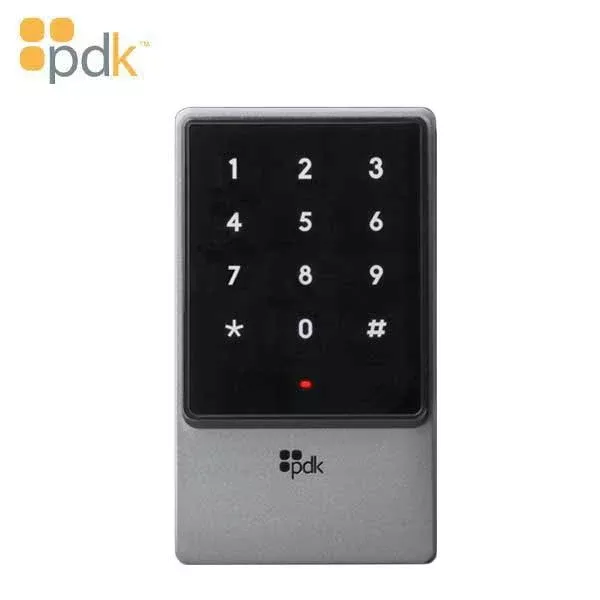

PDK – Ruggedized Reader- New Design – Cloud Network Access Control Single-Gang Prox & PIN Keypad Reader (125 KHz Prox)

PDK-RDRGRKRugged readers are a great fit for indoor/outdoor applications and offers users the flexibility of using everyday proximity credentials or PIN numbers to gain access to secure areas. Easily add an extra layer of security with two-factor authentication on keypad readers, requiring users to present proximity credentials and enter a PIN number to gain accessModel PN: RDRGRK – Single-Gang Rugged Keypad Reader (New Design)Metal Reader Features125 kHz RFID Proximity 26- to 37-bit Wiegand-based formatOutput converts to Wiegand formats Voltage: 12VDC at the reader from the Single io or Eight io boardElectronics potted and sealed with tamper-resistant epoxy for indoor and outdoor installationAluminum alloy case, fully potted, water-resistant IP65* (IP rated as “dust tight” and protected against water projected from a nozzle.)Backlight that can be set to on or offFCC, RoHS, and UL Standard 294 compliant5 kHz audio doorbell buzzerSpecificationsInput:Frequency: 125 kHzRead Range:≤ 2” inches (5cm)Output:Wiegand 26-37 bit formatEnvironmental:Temperature: -20o ~ +60o C or -4o ~ +140o FHumidity: 0 – 95% relative humidity non condensingOperating Humidity:0 – 95%Dust & Waterproof Rating:IP68Impact Protection Rating:IK10Enclosure:Single Gang Dimensions (W x H x D) 5.7” x 3.3” x 1”Power Voltage:DC12V±10%Manufacturer’s Limited Warranty:One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.Package Contents – (1) Single-Gang Rugged Reader (4) Mounting screws (4) Wall anchors for mounting to drywall (1) DiodeThis item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer’s warranty is ONLY available for professional certified access control installersData SheetOnline Manual
