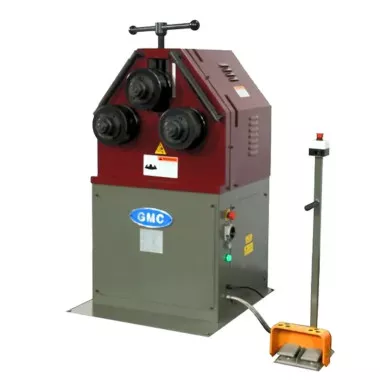

GMC PRB-55-1ph Ring and Angle Roll Bender with Manual Positioning (Single Phase)
Features
- ISO 9001 certified.
- 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube.
- Easy to operate in two positions; vertically and horizontally on its back.
- DRO – Digitally displays your exact position and ensures repeatability.
- Heavy Duty 4HP AC main motor.
- 1 – Top forming roll (hydraulic driven).
- 2 – Driven bottom rolls.
- Robust, all steel and welded framework.
- Quiet, compact, hydraulic system that ensures precision and improves productivity.
- Adjustable pressure control valve.
Specifications
| Model | PRB-55H-1PH |
| Roll Adjustment | Hydraulic Driven |
| Dia. of roller | 7-1/2” |
| Dia. of roller shaft | 2” |
| Roller speed | 16 RPM |
| Main Motor | 4 HP Single Phase Prewired: 220VAC / 15A |
| Dimensions | 40 in x 35 in x 65 in |
| Weight | 1,120 LBS |
| Oil Tank Capacity (only fill up 90%) |
7 Gal. |
| Recommended Hydraulic Oil | Texaco-Rando HD-68 Hydraulic Oil Shell AW-68 Hydraulic Oil |
Standard Equipment
- Equipped with 1-set of universal forming rolls suitable for many applications.
- Digital Readout (ensures repeatability and digitally displays your exact position).
- Left and right guide rollers (easily adjustable).
- Foot pedal (controls forward and reverse).
- Digital Readout (digital display).
- 4-metal support legs for horizontal position.
