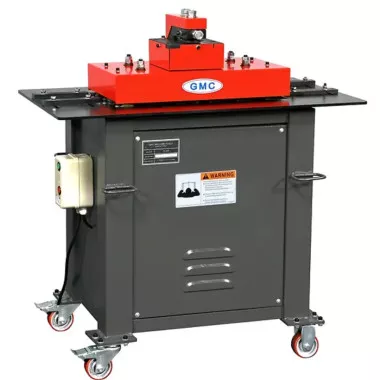

GMC PL-20E Pittsburgh Lockformer Machine: High-Quality and Efficient Solution
With its advanced features and robust construction, the Lockformer Pittsburgh Machine PL-20E is an excellent choice for sheet metal fabrication professionals looking for a reliable, versatile, and efficient machine.
Features
- 20 gauge capacity: The PL-20E can handle sheet metal up to 20 gauge, making it suitable for a wide range of applications.
- Creates tight, interlocking joints between two pieces of sheet metal.
- Made with high-quality materials and construction for durability and longevity.
- Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
- Compact and portable design for easy storage and transport.
- Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality.
- ISO 9001 certified.
- 1.5 HP Heavy Duty AC main motor, 110V.
- Standard Pittsburgh Attachment.
- Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll (Power flange attachment can only do radius parts).
- ACME side can be operated at same time
- Heavy duty caster wheels for easy moving.
Specifications
| Capacity | Pittsburgh Lock | 26 Ga. – 20 Ga. |
| Double Seam Lock | 26 Ga. – 20 Ga. | |
| Drive Cleat Lock | 26 Ga. – 22 Ga. | |
| Power Flange 1/4 in. | 26 Ga. – 20 Ga. | |
| Depth of pocket | 1/2 in. | |
| Feeding Speed | 32 FPM | |
| Main Motor | 1.5 HP, 10 AMP Prewired: 110VAC |
|
| Weight Approx | 458 lbs. | |
| Machine Dimensions (L x W x H) | 36 x 23 x 43 in. | |
| Shipping Dimensions | 38 x 25 x 42 in. |
Standard Equipment
- Standard Pittsburgh Attachment PA-20E, installed.
- Power Flange Attachment FA-20E, installed.
- Drive Cleat Roll DCR-20E, installed.
- Double Seam Roll DSR-20E, installed.
