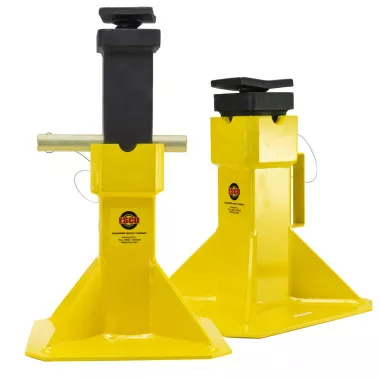

Esco 10456 Jack Stand (Pair) 22 Ton Maximum Capacity (Each) W/ Threaded Adjustable Post
The 22 Ton Jack Stands with Adjustable Screw Top Saddle (Pair) (MODEL 10456) are designed to support loads of up to 22 tons (44,000 lbs. per stand), making them ideal for a variety of industrial applications, including construction, semi-truck service/fleet, material handling, and any maintenance garage. Designed with an adjustable screw-style saddle that provides 2 inches of additional height for better accuracy while supporting the load. The lifting column is easy to position and adjust, with three different axle height positions to choose from. Additionally, the stand features a locking pin holder to prevent loss and a 1/4-inch thick solid steel base plate for added stability. The 22 Ton Jack Stands with Adjustable Screw Top Saddle (Pair) (MODEL 10456) are a reliable and versatile solution for heavy-duty lifting and support needs.
Features
- Support loads up to 22 Tons (44,000 lbs. per stand).
- Great for Construction, Fleet and Semi-Truck, Material Handling, Maintenance Garages, and more.
- Designed with an adjustable screw-style saddle that provides 2 inches of additional height for better accuracy while supporting the load.
- Pin Style Column adjusts to Three different Axle Height Positions.
- Adjustable pin is secured to stand to prevent loss.
- Handle provides ease of positioning and carrying.
- 1/4” thick solid steel base plate for added stability. Maximum Capacity of 22 Tons.
- Sold as a pair.
Specifications
| Capacity | 22 Tons / 44,000 lbs. |
| Minimum Height (Position 1) | 15.5 in. / 395 mm |
| Middle Pin (Position 2) | 17.5 in. / 444.5 mm |
| Maximum Height (Position 3) | 20.5 in. (22.5 in. with Extended Saddle) / 520.7 mm (572 mm) |
| Saddle Extension | 2 in. / 51 mm |
| Base Length | 11 in. / 279.5 mm |
| Base Width | 11 in. / 279.5 mm |
| Gross Weight | 78 lbs. / 35.5 kg |
| Net Weight | 76 lbs. / 34.5 kg |
| Package Dimensions | 19 x 13 x 15 in. / 483 x 330 x 381 mm |
| UPC (Universal Product Code) | 816904025397 |
