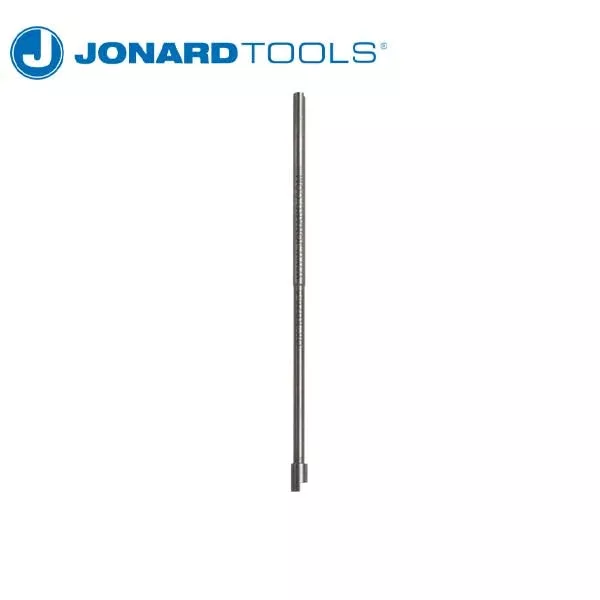

*Discontinued* Jonard Tools – Modified Wire Wrapping Bit – 24-26 AWG

Fully compatible with any make or model of wire wrapping tools, this 3″ modified wire wrapping bit is perfect for wrapping 24-26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrapRecommended for use on 0.025″ (0.63 mm) square terminals with 0.100″ (2.54 mm) center-to-center of the pinsCompatible Wrap Sleeve Part : P2224 and P2224INSSpecificationsSleeve Part No.P2224 and P2224INS (sold separately)Wrap FunctionWrapWrap TypeModifiedWire Gauge24-26 AWG (0.50 mm-0.40 mm)Maximum Insulation Diameter0.046″ (1.17 mm)Minimum Terminal Diagonal0.054″ (1.37 mm)Maximum Terminal Diagonal0.073″ (1.85 mm)Terminal Hole Diameter0.075″ (1.9 mm)Terminal Hole Depth0.75″ (19.05 mm)Effective Radius0.118″ (2.99 mm)Wrap Post Size0.045″ (1.14 mm)Dimensions3.11 in x 0.23 in x 0.22 in (7.89 cm x 0.59 cm x 0.55 cm)Weight0.02 lb (8.172 g)UPC 811490013216 Downloads:Spec Sheet
