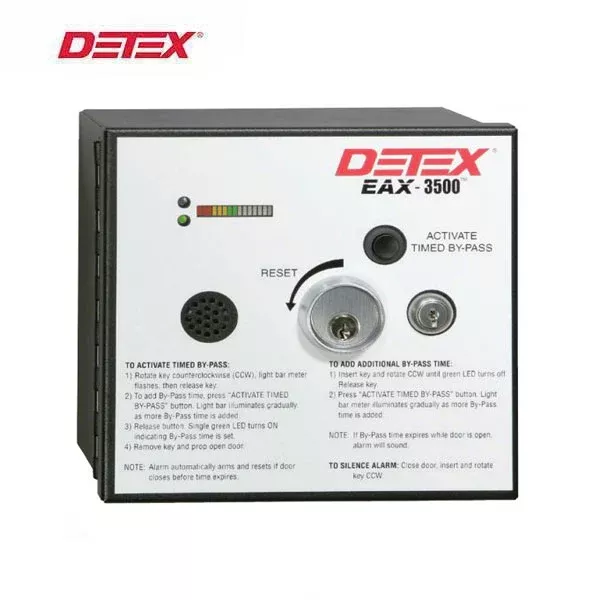

Detex – EAX-3500 – Exit Alarm – Surface Mount – Timed Bypass – 24VDC

The Detex EAX-3500 is designed for applications requiring a hard-wired, timed-bypass alarm with rechargeable backup battery. The 100dB alarm will sound when someone attempts an unauthorized exit. The EAX-3500 can be temporarily bypassed for deliveries and trash removal, but reminds manager to close and secure the door.EA-561 Warning sign and back box included. Shown with cylinder (mortise cylinder sold separately).FeaturesAllows manager to temporarily bypass the alarm, but does not allow the alarm to be turned offReminds manager to close and secure the door, minimizing door prop timeLEDs illustrate armed status and bypass time, allowing quick easy referenceHard-wired low voltage power with rechargeable battery insures uninterrupted secure power feedMaximum allowable bypass time can be factory set or field- adjusted to 5, 10, 20 or 40 minutesBypass time is easily set using two simple slide jumpers, located inside secured enclosure100dB alarm, powered by 12 to 24 VAC and rechargeable backup battery (included)Low battery alertRechargeable backup battery provides 72-hours of operationTimed bypass allows alarm to remain bypassed for allotted minutes, automatically rearming upon door closingAccepts 5, 6 or 7-pin standard and interchangeable core mortise cylinders with a standard Yale camPatented cam assembly automatically adjusts for different size/length cylinders without the use of additional spacers or cylinder collarsResetting the alarm can only be accomplished with a control keySpecificationsMountingSurface onlyAmp Draw.083 Amps @ 24 VDC (Alarmed).110 Amps @ 24 VDC (Door Prop)CylinderAccepts 5, 6 or 7-pin standardAlarm100 dbLED LightsArmed status and bypass timeVoltage24VACBatteryRechargeableCertificationsUL Listed, ANSI/BHMA 156.29 DownloadsCatalog PageInstallation Instructions
